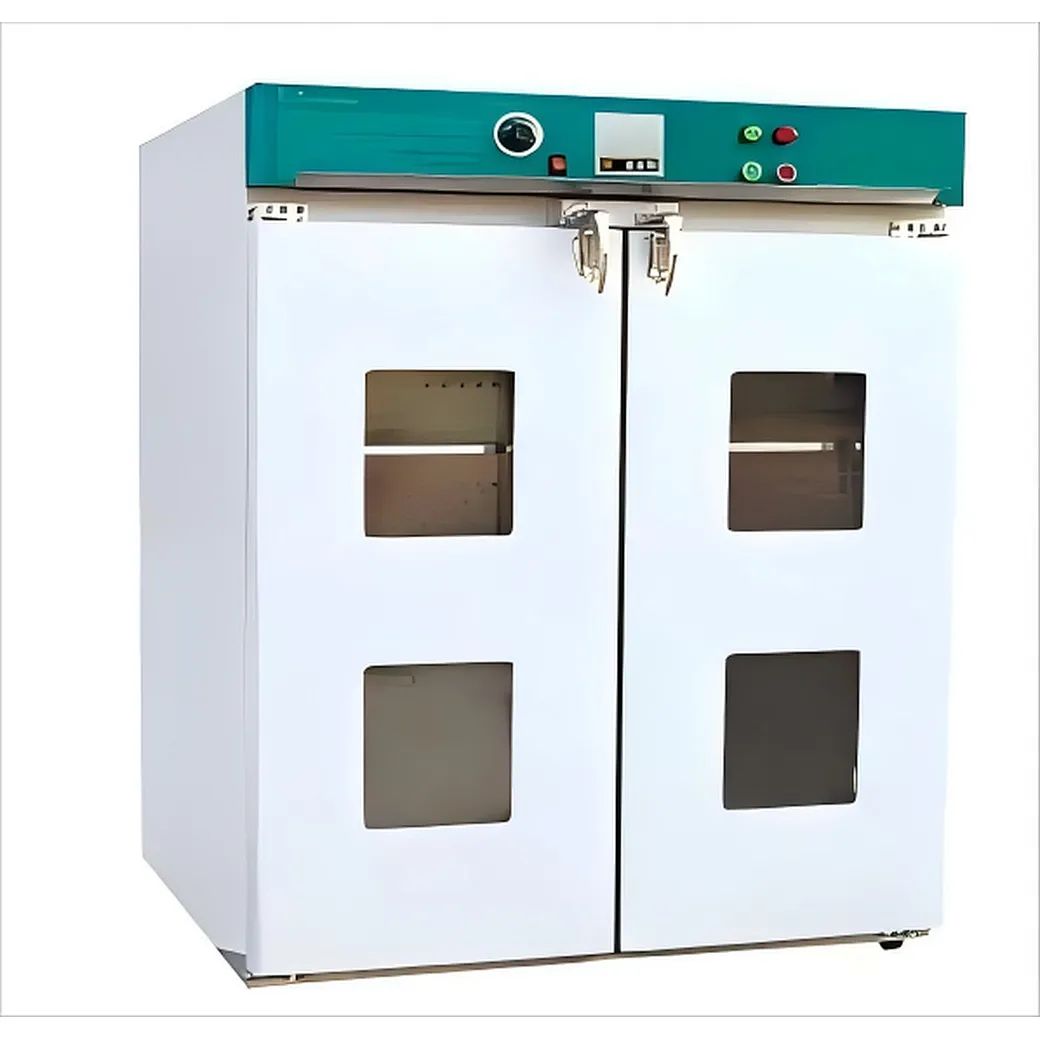

LDO-B-4AB Big Forced Air Drying Oven

Model NO. LDO-B-4AB

Minimum Order 1unit

The precise Lab Incubator with PID temp control and over-temperature alarm ensures safe and stable lab temperature experiments.

Quantity

Features：

PID or program temperature control controller, , with over-temperature alarm system.
Double doors ensure that use is convenient.
Forced Air System, with Low-noise fan, Centrifugal cycle mothod, high temperature uniformity.

Specification：

Model		LDO-4-4AB
Cycle Mode		Fan - forced circulation
Function	Temp. Range	RT+10-250℃
	Temp. Range	RT+10-250℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	±1℃
	Temp. Uniformity	±3%
Structure	Inner Chamber	AB：Stainless steel inner chamber


	Outer Shell	Galvanized sheet electrostatic spraying exterior
	Insulation layer	High quality rock wool board(with CE)
	Heater	Stainless steel heating tube
	Power Rating	6kW
	Exhaust hole	On top or side
Controller	Temp. Control mode	PID intelligent control or Multi - segment programmable control ( optional )
	Temp. Control mode
	Temp. Setting mode	Touch button setting
	Temp. Display mode	LCD Digital Display
	Timer	0-9999min (with timing wait function)）
	Operation Function	Fixed temperature operation, timing function, auto stop.
	Additional Function	Temperature deviation correction, menu locked, power-off memory
	Sensor	PT100
Safety Device		One key to start overheat power off
Specification	Inner Chamber size (WLH) (mm)	8008001000
	Inner Chamber size (WLH) (mm)	8008001000
	Exterior size (WLH)(mm)	94010001400
	Packing size (WLH)(mm)	106010901520
	Volume	640L
	Shelf Number	11
	Load Per Rack	30kg
	Shelf Space	70MM
	Power Supply (50/60HZ)	380V
	NW/GW (kg）	200
Accessory	Shelf	2
	Shelf	2
	Shelf frame	No
Optional Accessories		Spare shelf, Program Controller ,RS485 interface, Printer, Remote Control Products of different specificationa can be customized according to customer requirements.
