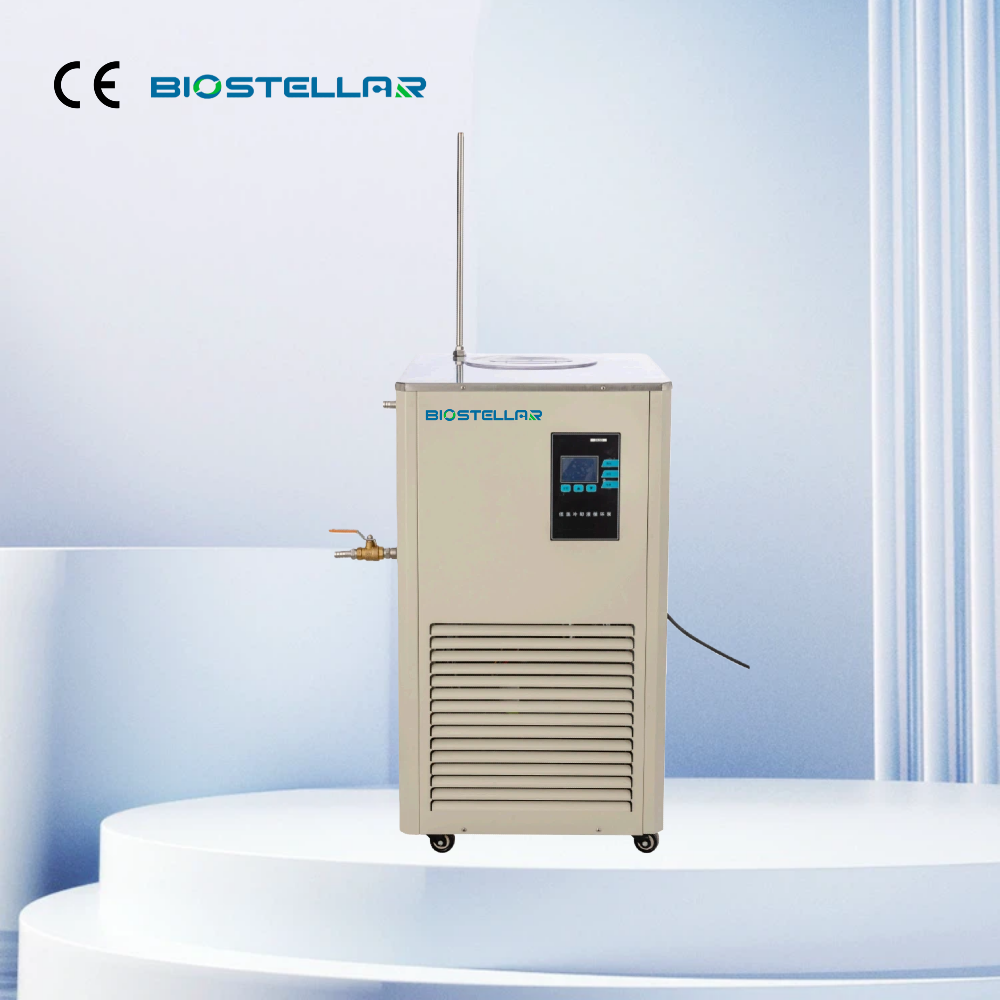

Low Temperature Cooling Circulator

Model NO. BS-DC Series

BIOSTELLAR DC Series Low Temperature Cooling Circulator provides precise temperature control from -20°C to 100°C, ±0.05°C stability, external circulation pump and stainless steel chamber for laboratory cooling applications.

Quantity

Send us your required temperature range, chamber size and application, and we will recommend the most suitable cooling circulator model with fast quotation and OEM support.

Product Introduction
The BIOSTELLAR DC Series Low Temperature Cooling Circulator is designed to provide stable and precise liquid cooling for laboratory instruments and experimental containers. With an intelligent PID temperature control system, fully enclosed compressor cooling system and external circulating pump, the unit can create a secondary constant temperature field and deliver cooling liquid outside the bath. The stainless steel chamber is easy to clean, corrosion resistant and suitable for routine laboratory cooling, temperature control and sample preparation applications.

Key Features

Wide temperature control range from -20°C to 100°C depending on model
High temperature stability up to ±0.05°C for reliable laboratory operation
Intelligent PID control system for precise and stable temperature regulation
Fully enclosed compressor cooling system with overheating and overcurrent protection
External circulating pump for building a secondary constant temperature field
Cooling liquid can be circulated outside the bath to cool external experimental containers
Hidden drainage design for convenient liquid discharge
Stainless steel chamber and countertop, easy to clean and corrosion resistant

Specification：

Model	Temperature Range	Temperature Stability	Chamber Size	Pump Flow	Top Opening Size
DC-0506	-5°C to 100°C	±0.05°C	280 × 220 × 120 mm	6 L/min	180 × 140 mm
DC-0510	-5°C to 100°C	±0.05°C	280 × 220 × 165 mm	6 L/min	180 × 140 mm
DC-0515	-5°C to 100°C	±0.05°C	280 × 220 × 250 mm	6 L/min	180 × 140 mm
DC-0520	-5°C to 100°C	±0.05°C	400 × 320 × 180 mm	6 L/min	300 × 220 mm
DC-0530	-5°C to 100°C	±0.05°C	400 × 325 × 240 mm	13 L/min	300 × 220 mm
DC-1006	-10°C to 100°C	±0.05°C	280 × 220 × 120 mm	6 L/min	180 × 140 mm
DC-1010	-10°C to 100°C	±0.05°C	280 × 220 × 165 mm	6 L/min	180 × 140 mm
DC-1015	-10°C to 100°C	±0.05°C	280 × 220 × 250 mm	6 L/min	180 × 140 mm
DC-1020	-10°C to 100°C	±0.05°C	280 × 250 × 280 mm	6 L/min	235 × 160 mm
DC-1030	-10°C to 100°C	±0.05°C	400 × 325 × 230 mm	13 L/min	310 × 280 mm
DC-2006	-20°C to 100°C	±0.05°C	250 × 200 × 150 mm	6 L/min	180 × 140 mm

Q1: What is a low temperature cooling circulator used for?
A low temperature cooling circulator is used to provide stable liquid cooling for laboratory instruments, reaction vessels, condensers and external experimental containers.

Q2: What temperature range does the DC Series cover?
The DC Series covers different temperature ranges depending on model, including -5°C to 100°C, -10°C to 100°C and -20°C to 100°C.

Q3: Can the cooling liquid be circulated outside the bath?
Yes. The unit is equipped with an external circulating pump, allowing cold liquid to be delivered outside the bath for external cooling applications.

Q4: What is the temperature stability?
The temperature stability is ±0.05°C, suitable for precise laboratory temperature control.

Q5: Is the chamber easy to clean?
Yes. The chamber and countertop are made of stainless steel, which is corrosion resistant and easy to clean.

Q6: Which model should I choose?
Model selection depends on your required temperature range, chamber size, pump flow and top opening size. You can provide your application and target temperature, and we will recommend a suitable model.
