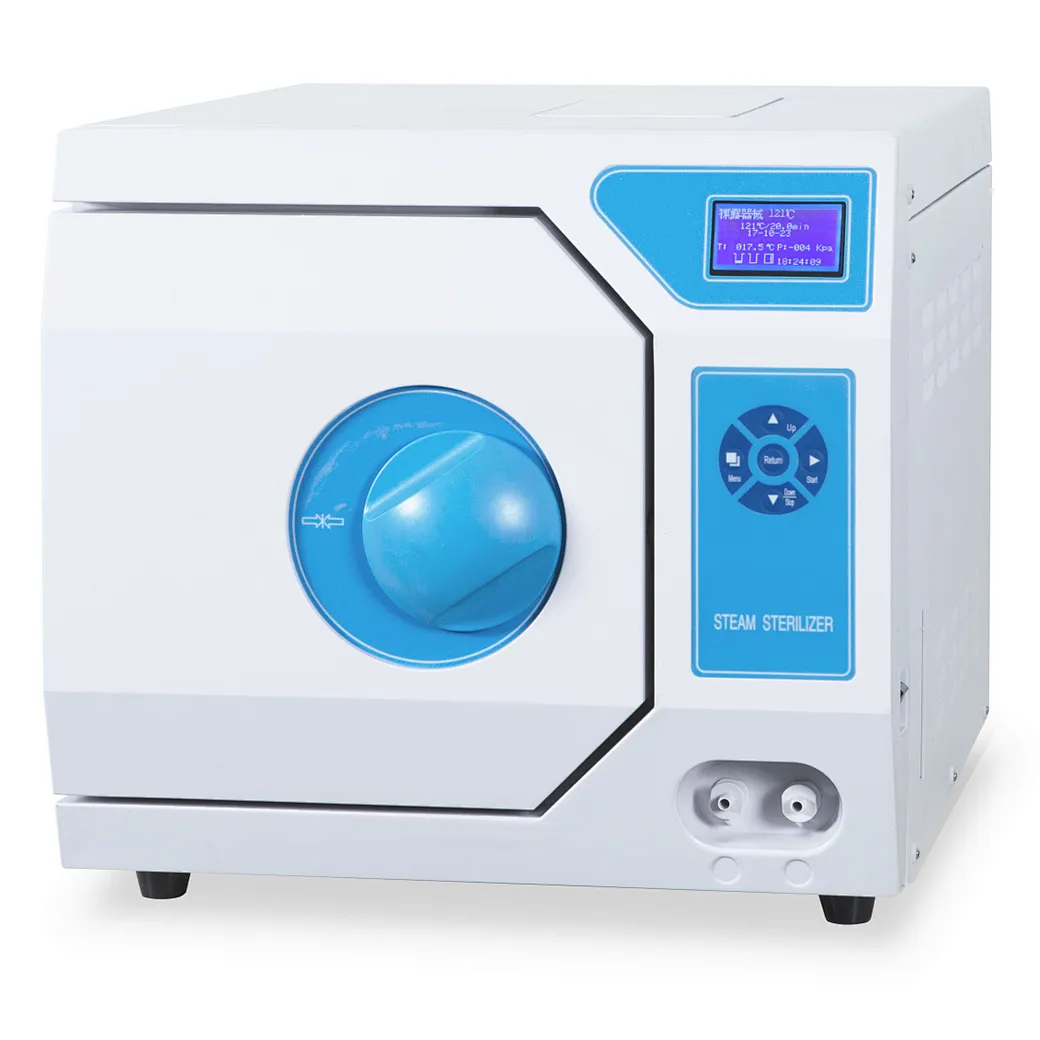

BSAT Series Type B (Pulsating Vacuum) Table Top Steam Sterilizer

Model NO. BSAT-8/12/18/23B

Minimum Order 1unit

Country of Origin Qingdao Port

Quantity

Features：

● LCD Display
● Electronic Safety Door Interlock
● High-quality Stainless Steel Chamber, Sealed Cover
● Microcomputer Control, Fully Automated Process Control
● Automatic Fault Detection
● High Altitude Adaptive System, Automatic Atmospheric Pressure Calibration
● 9 Preset Programs, 3 Test Programs
● Equipped with Standard Test Interface
● European Class B Standard, Triple Pulsed Vacuum
● Comprehensive Automatic Protection Functions for the Machine
● Built-in High-efficiency Independent Steam Generator, Quickly and Stably Provides Saturated Steam
● Built-in Printer, USB Function
● Optional Water Quality Testing Function

Advantages:

Class B Lab Autoclave
Fully Automatic Autoclave
Vacuum Lab Sterilizer

Specification：

Model	BSAT-8B	BSAT-12B	BSAT-18B	BSAT-23B
Volume	8L	12L	18L	23L
Power	2.2KW	2.2KW	2.2KW	2.2KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	-0.1~0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Sterilization temperature range	116~134℃
Sterilization time range	4~ 120 min
Drying time range	0~240 min
Chamber Size(mm)	Φ170x320	Φ200x355	Φ250x360	Φ250x450
Overall dimensions (mm)	445x580x400	445x580x400	600x475x445	680x475x445
Packing dimensions (LxWxH)(mm)	640x500x450	640x500x450	710x560x510	750x560x510
Gross weight/Net weight	49/40kg	51/42kg	60/49kg	63/51kg

Applications

Ideal for sterilizing medical, pharmaceutical, and laboratory instruments with precision and efficiency.
Suitable for use in hospitals, clinics, research labs, and pharmaceutical production, ensuring reliable sterilization for various tools and equipment.
Perfect for sterilizing items in accordance with European Class B standards, with triple pulsed vacuum for thorough sterilization.

Certifications

Complies with European Class B standards, ensuring high-performance sterilization for sensitive medical and laboratory tools.
Includes a high-altitude adaptive system for automatic atmospheric pressure calibration, making it suitable for various environments.
Equipped with a built-in high-efficiency independent steam generator for consistent and rapid sterilization.

Q1: What is the sterilization capacity of the autoclave?
A: The autoclave is equipped with a high-quality stainless steel chamber and a sealed cover, offering reliable sterilization for a variety of laboratory, medical, and pharmaceutical instruments.

Q2: What are the safety features of this autoclave?
A: It includes an electronic safety door interlock, automatic fault detection, and comprehensive protection functions to ensure safe and reliable operation.

Q3: How does the high-altitude adaptive system work?
A: The autoclave’s high-altitude adaptive system automatically calibrates atmospheric pressure, ensuring effective sterilization regardless of altitude.

Q4: Does the autoclave include any additional functionalities?
A: Yes, it features a built-in printer and USB function for easy data management, as well as an optional water quality testing function to monitor water conditions during sterilization.

Q5: Why choose BIOSTELLAR?
A: BIOSTELLAR is a one-stop service provider offering top-quality laboratory equipment, including the Class B Lab Autoclave, with expert customer support to ensure reliable, efficient, and safe sterilization for all your laboratory and medical needs.
